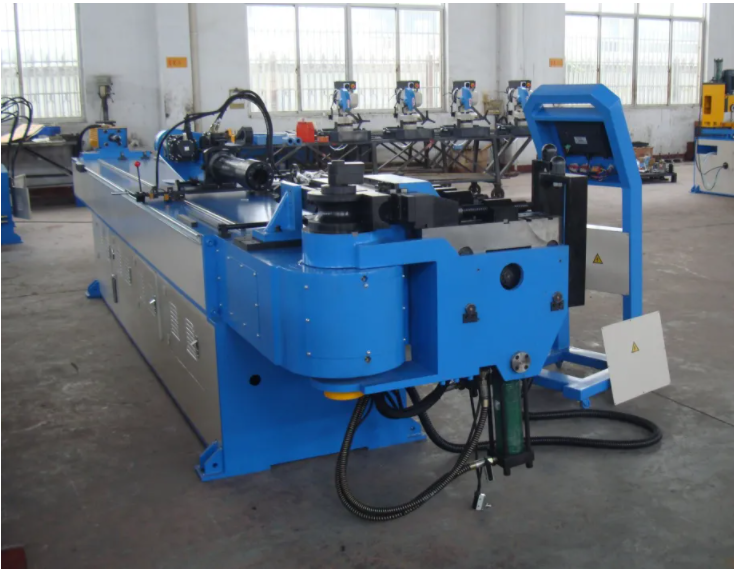

Mesin Pembengkok Automatik Tunggal dengan Sijil Ce (GM-SB-76CNC)

Mesin Pembengkok Automatik Tunggal Kepala dengan Sijil Ce (GM-SB-76CNC) yang ditawarkan oleh pengeluar China GMACC. Beli Mesin Pembengkok Automatik Single-Head dengan Sijil Ce (GM-SB-76CNC) secara langsung dengan harga rendah dan berkualiti tinggi.

Status ketersediaan:

Kuantiti:



Enquire Menambah kepada bakul

Model:
GM-SB-76CNC
Jenama:
GMACC

Penerangan Produk

Penerangan Produk

GM-SB-76CNC secara automatik membengkokkan pada mesin yang sama sesuai untuk bahan kerja automatik berterusan yang berbeza arah, sejumlah sudut kerja tiga dimensi yang berbeza, menggunakan pengendali mesin skrin sentuh dan prosedur kawalan komputer industri, adalah automatik yang ekonomik dan efisien penyekat paip.

1. Mesin Mesin Pembinaan dengan pengelasan, pemasangan bahagian mekanikal, sistem hidraulik import, kawalan elektronik import kain untuk diselesaikan.
2. Persembahan utama Menggunakan skrin sentuh perindustrian, dalam menu mod Bahasa Inggeris adalah sederhana, dengan automasi berketepatan tinggi, cepat, pelbagai fungsi dan tinggi. Setiap tindakan mesin dikendalikan oleh sistem kawalan program PLC.

3. Parameter teknikal
Nama Unit GM-SB-76CNC
Maks. Kapasiti Lenturan mm 76 * 4
Kawasan Lenturan Radius mm 30-350
Kawasan Sudut Lenturan ° 0- 190
Maks. Melalui Jarak Berkesan mm 2500
Precision Lenturan ° ± 0.10
Kelajuan Lenturan ° / saat 30
Ketepatan Makan mm ± 0.10
Kelajuan Makan mm / saat 800
Ketepatan Pusing Pusing ° ± 0.10
Putar Kelajuan Paip ° / saat 160
Kuasa Motor Sistem Pam Minyak KW 7.5
Maks. Tekanan Kgh / cm \ 2 16
Panjang Umum * Lebar * Tinggi mm 5000 * 1200 * 1350
Berat Am T 3.5
